Re assembly

In the vain effort to get organized I've upgraded my work area.  I've added a new tool kart so that I can keep my tools and my parts, well, apart.   I also got a new work table for the basement, this will un-clutter my little work table.

Yes, that's a welding blanket.  I like sparks but they don't go well with bare Styrofoam insulation.

I've scraped all the silicone off of the water pump cover.  I'll replace that with the proper gasket.  Amazing how much stuff was in there.

Next I start putting the head set back on.  The grease makes it easier than I thought, it just holds the bearings in place like glue.  Note that the same grease turns a little bearing into a projectile if you squeeze it too hard between your fingers.  Luckily I had a couple spares.

Now I reassemble the thing.

I have two washers left over and I can't friggin' figure out where they go.  I'll have to look at some diagrams and find out where they go.

Note I've also reinstalled the engine mount.

I take a fork tube to the new work bench and start taking it apart.  They tell you to watch for the spring to push that top nut out and I'm a little cautious when I do so.  Nevertheless KABLAMO, the thing shoots off.  Not as violent as I thought but I still am covered in fork oil.  I did have the presence of mind to aim the top nut into the catch bucket.

I take it apart and lay it out clearly on the table.  I remove the old seal and inspect the forks.  They look good.

I want the fork tubes black so I clean, sand, and paint it.

 I need some thread locker before I put it together so I leave it for now.  I hope I remember how it goes back together.

I got the tires back from balancing.  Unfortunately the front wheel is bent enough that it wouldn't pass a safety.  I have another one on the bike under the mound of snow in my back yard.  Hopefully it's straight.  If not I can always get this one straightened.

The back one being fine, I started putting stuff back on the bike.

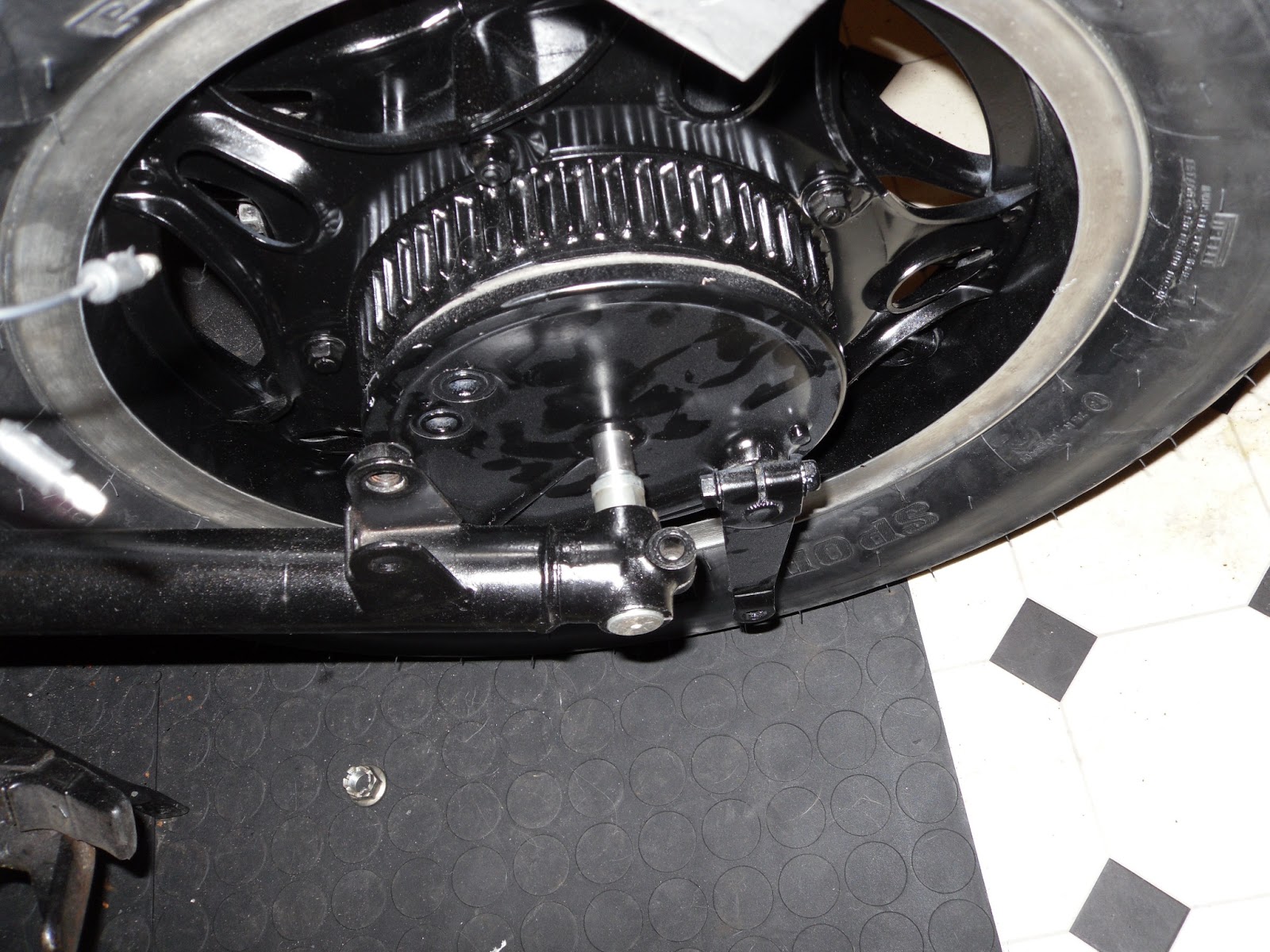

First the diff, the rear brake then the rear wheel.

I wish I had labeled things much better.  I thought I did a good job but I must have been kidding myself.  Here I put the front axle in the rear.

I searched for half a day before I found the one labelled "rear axle"   I wrongly assumed that if I label the rear one then the front one would be self evident,  nope.

Next I drilled holes for the signal's wiring to go through.

t

Bend a little copper tubing  and that should hide the wires nicely.

One little problem though.  The signals are already wired with the proper connectors,  unfortunately they won't fit through the tubes so I'll have to cut then re solder them.

I then reinstall the shocks to make sure nothing is in something else s way.

This I managed not to screw up.

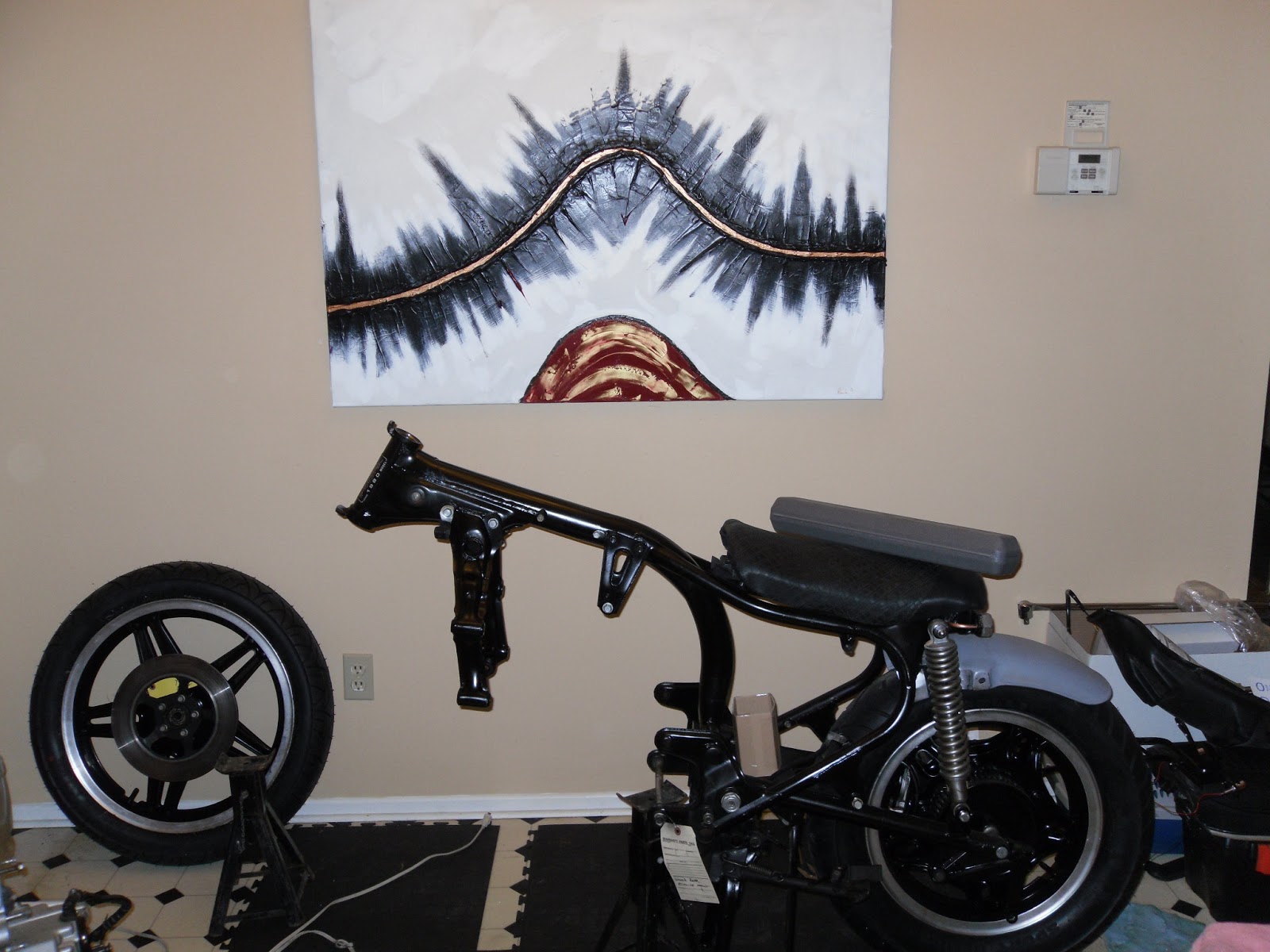

Next I test fit the seat.

Two things that go without a hitch, lets go for three.

I go to set the fender in and we have a problem.  Now that everything is there I have some clearance issue.  I can't get the fender in between the frame rails, not by much but just enough.  Out comes the Dremel and with a few strategically placed cuts we are back in business.

Here is the fender mounted with all the other stuff.

That plate bracket is a little off, easy fix.

The rear turn signals are done.  Here they are.

You'll also notice I've started working on the brackets for the stop lamp.  They look simple but they will need a bit of work to get them to sit evenly.

I've fixed the crash bar that was ground when the bike was crashed.

From this....

to this...

Here is the leather jacket I got at Value Village, our local thrift shop.

The original vinyl kept the memorie of the original seat so it had bumps and stuff that I couldn't work around.

Re-assembly

The frame is now painted.

Mr. T would have had me powder coat it but for my first build I didn't want to deal with the trouble that presented.  I would have had to remove the trailing arm,  chased the threads and who knows what else a thick coat of plastic would have meant.  He was right mind you but for now I want to keep it as simple as possible.

I've also painted the rear brake assembly and the diff.

Some of the gaskets I got From Toby are going on.  It will be nice to finish playing with the engine.

Hmmm,  I thought I cleaned that engine.  Gotta do it again I guess.

I played with the seat a little.  I'm going to rivet the cover on.  Like so...

Mr. G was over to help me figure out some things.  A fresh perspective helps.

He found this little miracle thing, I'll call it the gobbler,  it chews off whatever you put in it's way.  I thought it was for wood and soft stuff but no,  it likes to eat metal.  Say hello to my new little friend.

He also didn't think that my original idea to mount the tail lamp was good.  I was going to use this thing.

That would have meant drilling holes in a fender I was going to paint.  Also,  it's flat bottom was going to present problems when it comes to making  it mount and look good very difficult.

He took a license plate bracket for the plastic fender and held it up where he thought it looked good.  A little more finagling and this is what we came up with.

Flipin' brilliant.  Now I just have to make brackets for it out of these.
